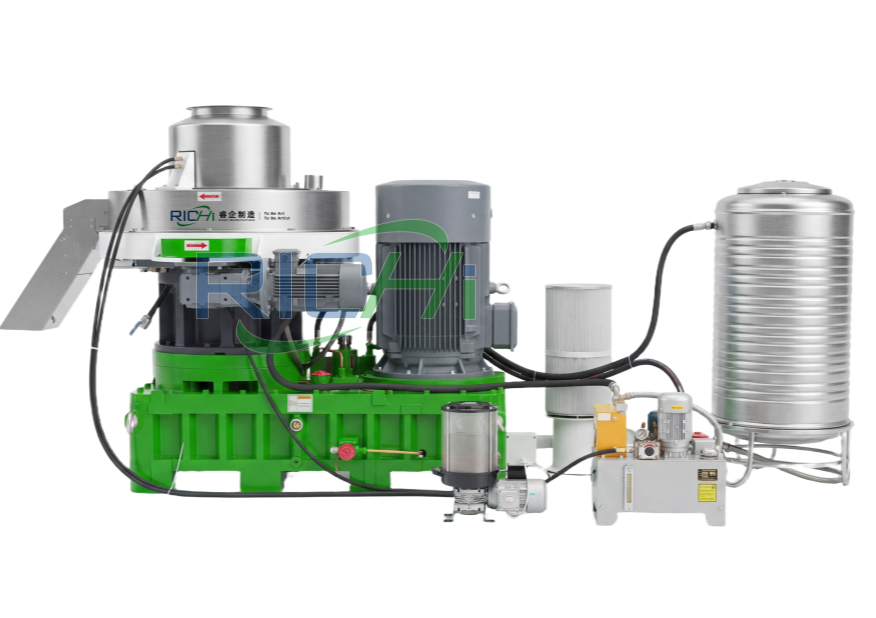

Vertical Biomass Pellet Machine
Introduction to Vertical Biomass Pellet Machines
Entering the biomass pelleting industry isn’t complicated, but achieving stable profitability is not easy. The key lies in choosing the right equipment from the very first step. This new vertical biomass pellet machine is simple to operate and highly automated, effectively reducing production difficulty and helping biomass producers quickly get started.
Furthermore, the equipment’s capacity ranges from 1 ton to 10 tons per hour. It’s suitable for both on-the-job pellet production and large-scale commercial production. Through vertical feeding, it compresses various biomass raw materials into compact pellets that can be used for industrial combustion and animal bedding.
Besides finding good equipment, choosing a reliable and experienced supplier is also crucial. RICHI Machinery has provided customized pelleting solutions to over 2,000 customers worldwide for 30 years. Extensive experience allows for easy handling of various biomass pellet problems. Therefore, you are welcome to contact us at any time. We will provide you with a one-stop service and lifetime technical support.
How do vertical biomass pellet machines process different raw materials?
Vertical ring die pellet mills, due to their unique vertical structure design, have virtually no restrictions on the processing of most biomass raw materials. They excel particularly at processing sawdust, wood chips, rice husks, wheat straw, corn stalks, peanut shells, sunflower seed shells, bamboo powder, palm fiber, and other agricultural and forestry wastes. These are high-fiber, highly variable, and lightweight materials that often daunt ordinary pellet mills. With a vertical pellet mill, only simple pretreatment and process adjustments are needed to produce high-density combustion pellets and animal bedding. No additional equipment investment is required.
Wood raw materials
These materials naturally contain high levels of lignin. Under pressure and friction at 80-120 degrees Celsius, they soften naturally and acquire binding properties. This makes the pellets more stable. Typically, the pellet density can reach 1.1–1.3 g/cm³, making them not only heat-resistant but also resistant to breakage during long-distance transportation and storage.
agricultural straw
Long fiber length and loose structure are common characteristics of this type of raw material. When processing straw-like raw materials, we usually recommend increasing the ring die compression ratio (approximately 1:6–1:8). A higher compression ratio means greater compressive force on the material. This helps to strengthen the internal binding force of the pellets, thereby producing compact and dense pellets.
Shells and hard materials
Hard biomass raw materials have a low lignin content but contain a large amount of minerals such as silica. Therefore, processing them into pellets requires not only a suitable compression ratio. But more importantly, pelletizing equipment with high-quality wear-resistant materials to ensure long-term stable production. Vertical biomass pellet machines meet all these conditions.
Mixed raw materials
Mixing different raw materials for pelleting is a common practice among biomass pellet manufacturers. Proper mixing can effectively improve pellet formation rate and optimize combustion performance. However, it’s crucial to prioritize pellet formation when selecting raw materials. For example, you can start by using raw materials with high lignin content as a base, then add auxiliary materials such as husks and straw to further enhance performance.
Another important point is that, for optimal pelleting results, we recommend controlling the moisture and humidity of the raw materials within a reasonable range before pelleting. If you are unsure whether your raw materials are in ideal condition, we can provide free raw material testing.

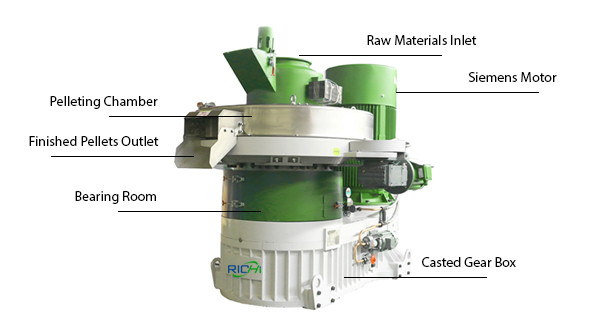

Technical advantages of vertical biomass pellet machines
- The vertical pellet mill features a centralized, vertical layout, maximizing floor space and facilitating routine maintenance.
- The horizontally mounted ring die allows material to fall vertically into the hopper, shortening the feeding distance and reducing the likelihood of material accumulation.

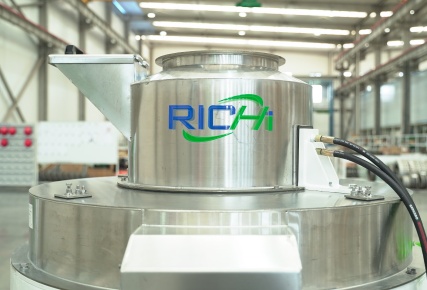

- The variable frequency feeder automatically adjusts the feeding speed based on the raw material characteristics, preventing material waste.

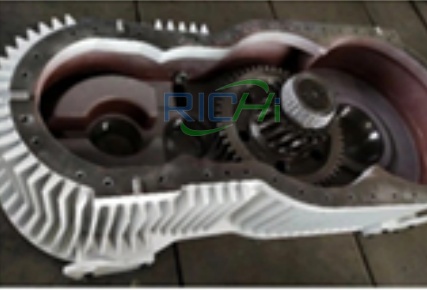

- High-precision gear transmission is 15% more efficient than belt-driven models.

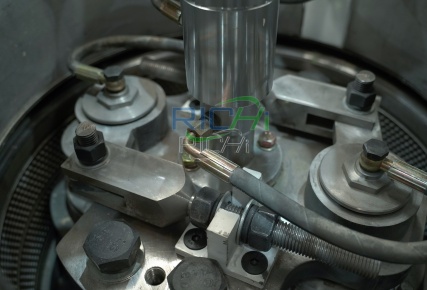

- The ring die incorporates several innovative designs. During pelleting, it can be rotated 180 degrees for double-sided use, effectively extending the machine’s lifespan.
- The ring die, pressure rollers, and cutter are all made of alloy steel—42CrMo—offering high wear resistance.

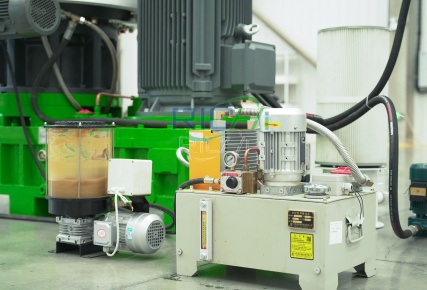

- An automatic lubrication system provides timed and metered lubrication to critical components such as the main shaft and bearings, eliminating the need for machine downtime and simplifying operation.

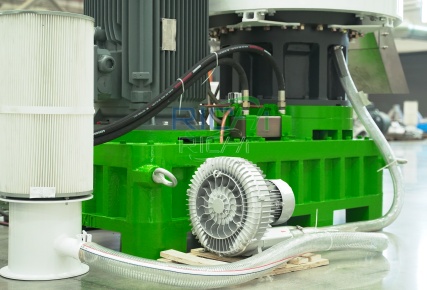

- An external air-cooled exhaust system removes moisture and heat generated during pelleting, preventing machine overload.

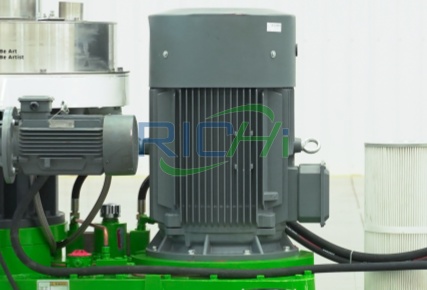

- The equipment uses a high-efficiency, low-consumption Siemens motor, adaptable to various production environments.
- The integrated frame structure results in low noise, high stability, and prevents uncontrolled swaying.
Models and parameters of vertical biomass pellet machines
We offer various models of vertical biomass pellet machines to meet different production capacity needs. Regardless of the model, the quality is guaranteed because all our equipment has passed rigorous international CE and ISO testing. In addition to these basic capacity options, we also provide customized services. You can provide your production volume, raw materials, budget, etc., and we can design the most suitable solution and the most favorable price for you.
| Model | V-MZLH 560A | V-MZLH 560B | V-MZLH 850A | V-MZLH 850B | V-MZLH 928 | V-MZLH 1180 |
| Main Motor Power (kW) | 90 | 160 | 220 | 280 | 355 | 630 |
| Finished Pellet Diameter (mm) | 4~12 | |||||
| Output (T/H) | 1-1.2T/H | 1.5-2T/H | 2.5-3T/H | 3-4T/H | 4-5T/H | 7-10T/H |
(Standard output may vary depending on the condition of the raw materials. Specific parameters need to be determined based on actual production conditions.)
Application of vertical biomass pellet machines
Vertical biomass pellet machines have a wide range of applications. With their flexible raw material processing capabilities and stable, continuous performance, they can produce biomass pellets of various high performance qualities. It has already helped several biomass resource utilization projects generate stable revenue.

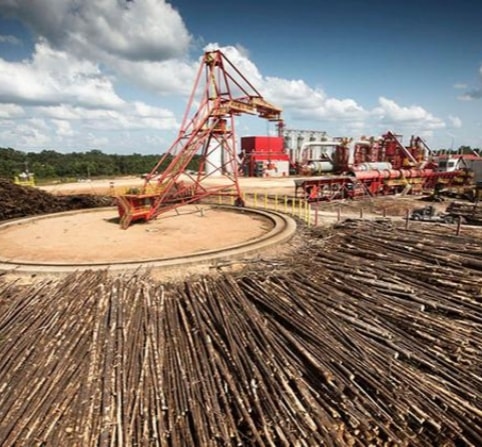

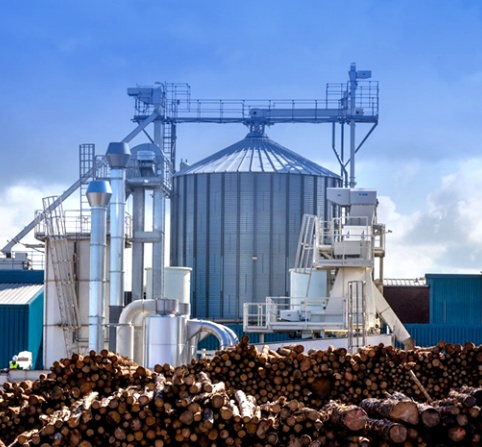

Biomass fuel
This is one of the most mature applications of vertical biomass pellet equipment. Compared to loose raw materials, pellets formed through high-temperature extrusion have a bulk density that can be increased by 2-3 times, and their calorific value typically reaches 16-19 MJ/kg. They are not only easy to transport, but also release fewer polluting gases during combustion. Currently, these pellets are gradually being adopted as a clean energy source in various fields such as industrial boilers, district heating, and residential heating.
Animal bedding industry
You can also use this equipment to produce bedding for animals such as cattle, sheep, and horses. These granules are smooth and uniform, and will not scratch the animal’s paws. At the same time, the granules are compact and highly absorbent, quickly absorbing animal urine and preventing mold and bacterial growth.
Organic fertilizer production
By mixing agricultural and forestry waste with animal manure, producers can create high-value organic fertilizer pellets. These pellets are rich in organic matter and nutrients such as nitrogen, phosphorus, and potassium, which can steadily promote crop growth. Compared to powdered fertilizers, pellets offer better control over dosage and can effectively reduce waste.

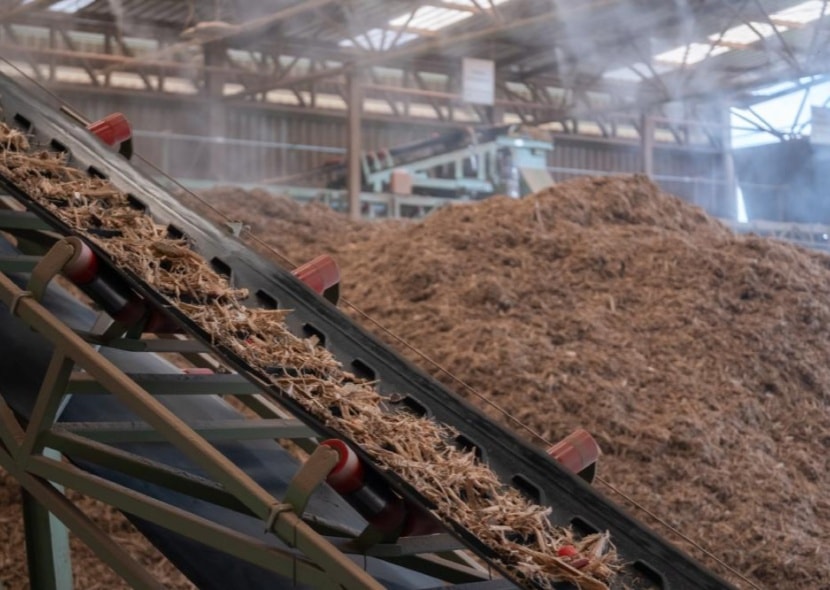

Agricultural and forestry waste recycling
In the past, many agricultural and forestry wastes were simply disposed of by direct incineration, which not only polluted the environment but also wasted manpower. However, vertical biomass pellet production machines offer a new solution. They transform waste into high-value-added products. Moreover, because the raw materials needed for these products are inexpensive and have a broad market, they represent a profitable investment project for energy and agricultural processing companies.
Complete vertical biomass pellet production line
If you want to sell your pellets on the market, a single vertical biomass pellet machine is often not enough. A scientifically designed and efficient production line is essential. It can ensure continuous and stable production and excellent finished products. A complete biomass pellet production line includes six steps.
01
Cleaning
First, it’s essential to clean all impurities from the raw materials thoroughly. We have various specialized cleaning equipment available for this purpose.
02
Crushing
Use a grinder to pulverize the raw materials into a powder of 3-5mm. Raw materials in this state can better bind together to form compact particles.
03
Drying
This step is mainly for raw materials with excessively high moisture content. Our dryers can adjust their rotation speed according to the condition of different raw materials to achieve rapid drying.
04
Pelletizing
With the aid of its own weight and the feeder, the raw materials smoothly enter the vertical biomass pellet machine. Here, the pressure rollers force the material into the ring die orifice. The cutter quickly cuts the material into uniform pellets the moment it exits the die orifice.
05
Cooling
The cooling system uses cold air to cool and set the granules. During this process, moisture from the granule surface is also carried away. This further prevents the granules from molding.
06
Packaging
Qualified granules will enter the finished product warehouse, where they await precise weighing by an automatic packaging scale and then placed into packaging bags.
Case Study of Vertical Biomass Pellet Machine
— Richi Machinery —
Below are some typical vertical biomass pelleting project examples. They can help you see more intuitively the superior performance of vertical pellet mills in different production environments.

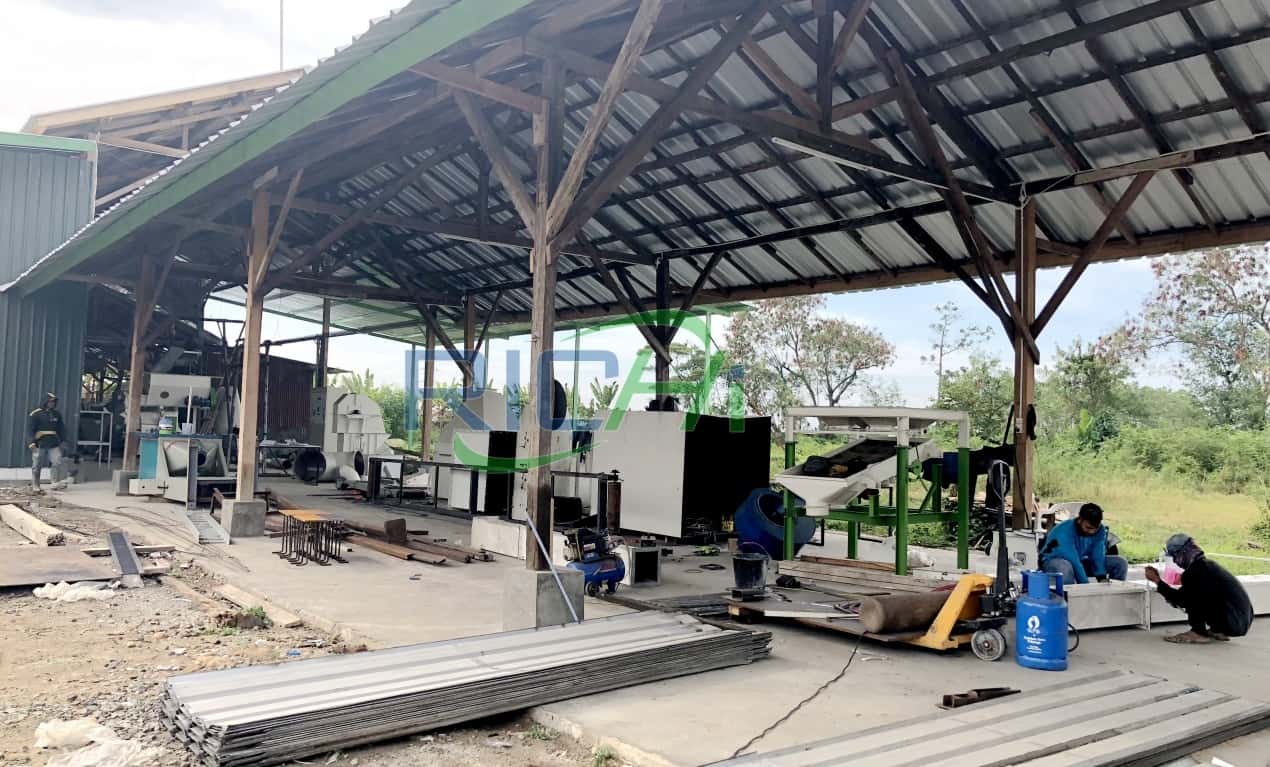

1-1.2T/H Vertical Biomass Pellet press in Nigeria
This is a newly established biomass energy company. The client wanted to set up a small-scale production line for trial production. He particularly emphasized that the produced pellets needed to have good pelleting properties, be compact, and not easily broken, thereby reducing losses during transportation and improving the pellets’ combustion performance.
The client’s raw materials included palm shells, which are high in hardness. To ensure pelleting quality, we appropriately increased the ring die compression ratio and included a crushing section in the production line.
- Raw Materials: Palm shells, rice husks, sawdust, corn stalks
- Main Equipment: Crusher, vertical ring die pellet machine, cooler (cooling and shaping), packaging system

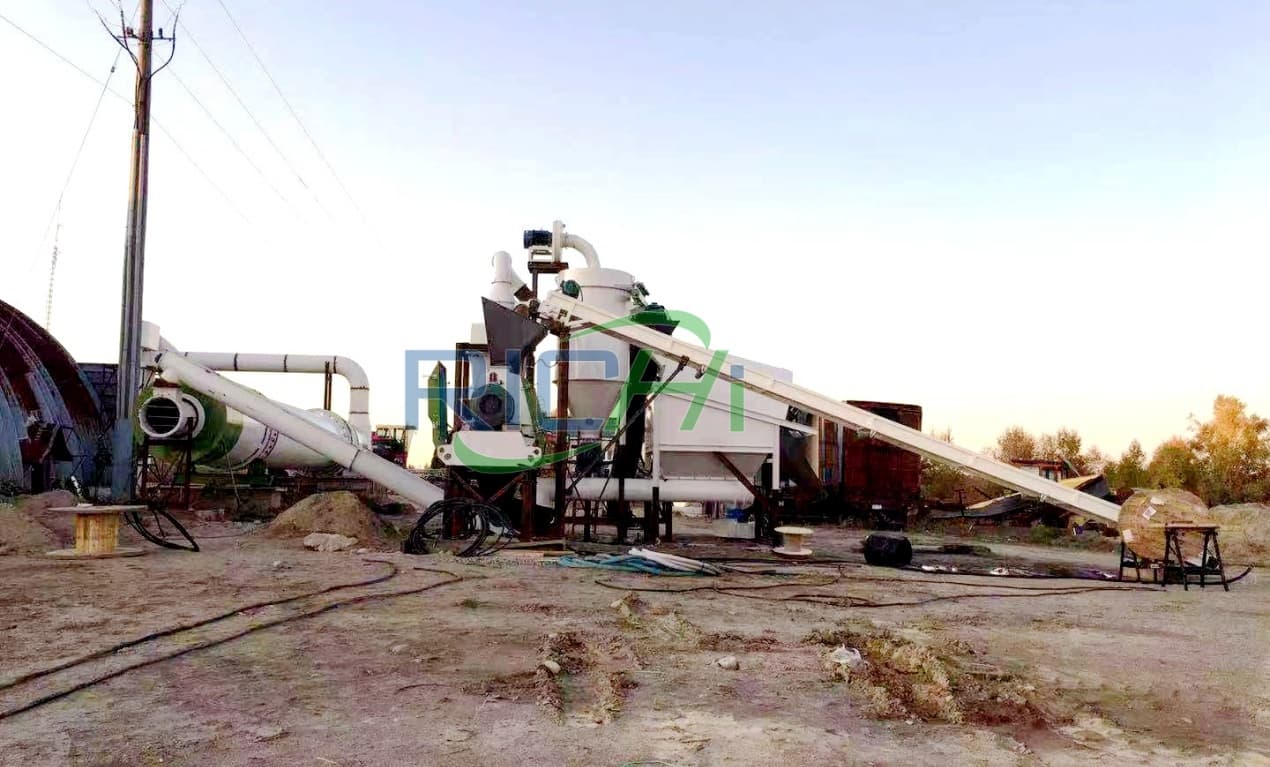

2.5-3T/H Vertical Biomass Granulator in Vietnam
Due to the hot and humid climate in Vietnam, the customer’s raw materials had a high moisture content. To ensure optimal molding results, we equipped them with a rotary drum dryer, which can remove a large amount of moisture from the raw materials in a short time. The final moisture content of the raw materials was controlled at 15%, and the pellet forming rate reached 95%.
The customer is the owner of a furniture processing factory who wanted to use their wood waste to produce combustible pellets to supply nearby industrial boilers.
- Raw Materials: Furniture factory sawdust, shavings, wood scraps
- Main Equipment: Wood shredder, vertical wood pellet machine, rotary drum dryer, cooler, packing scale

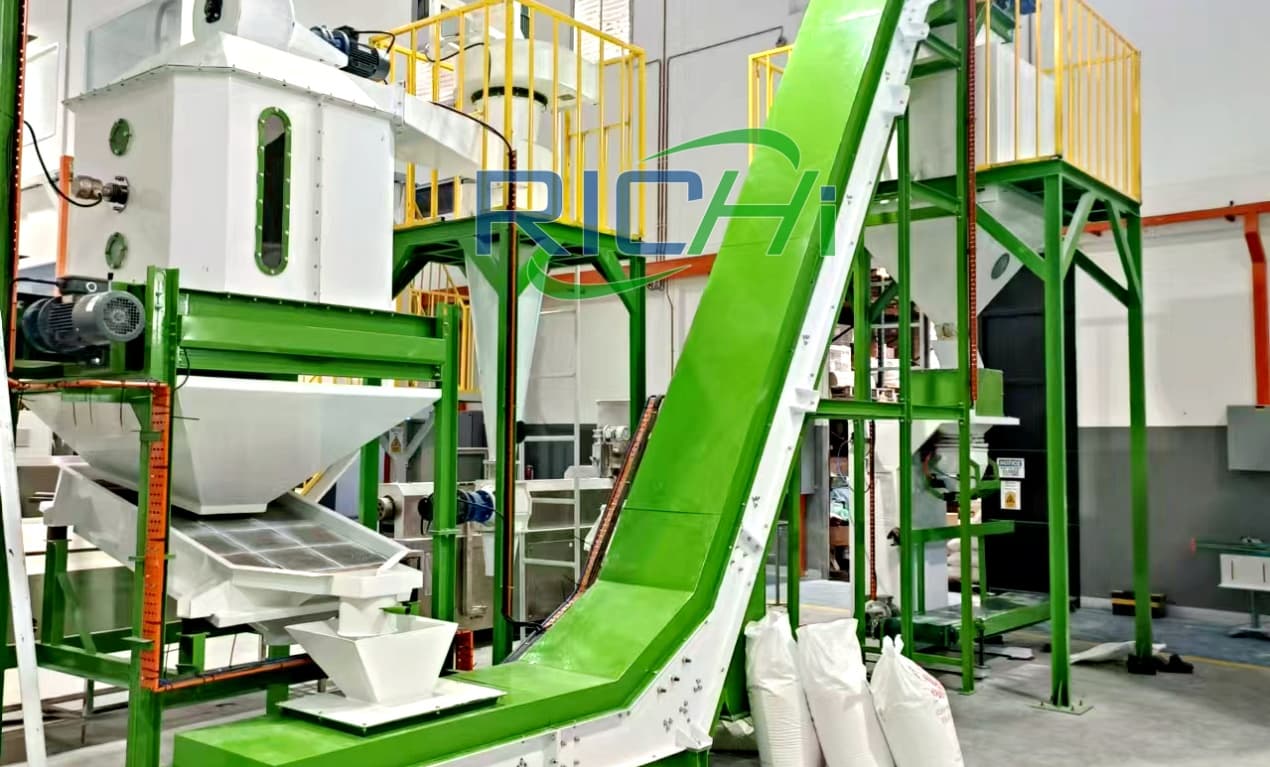

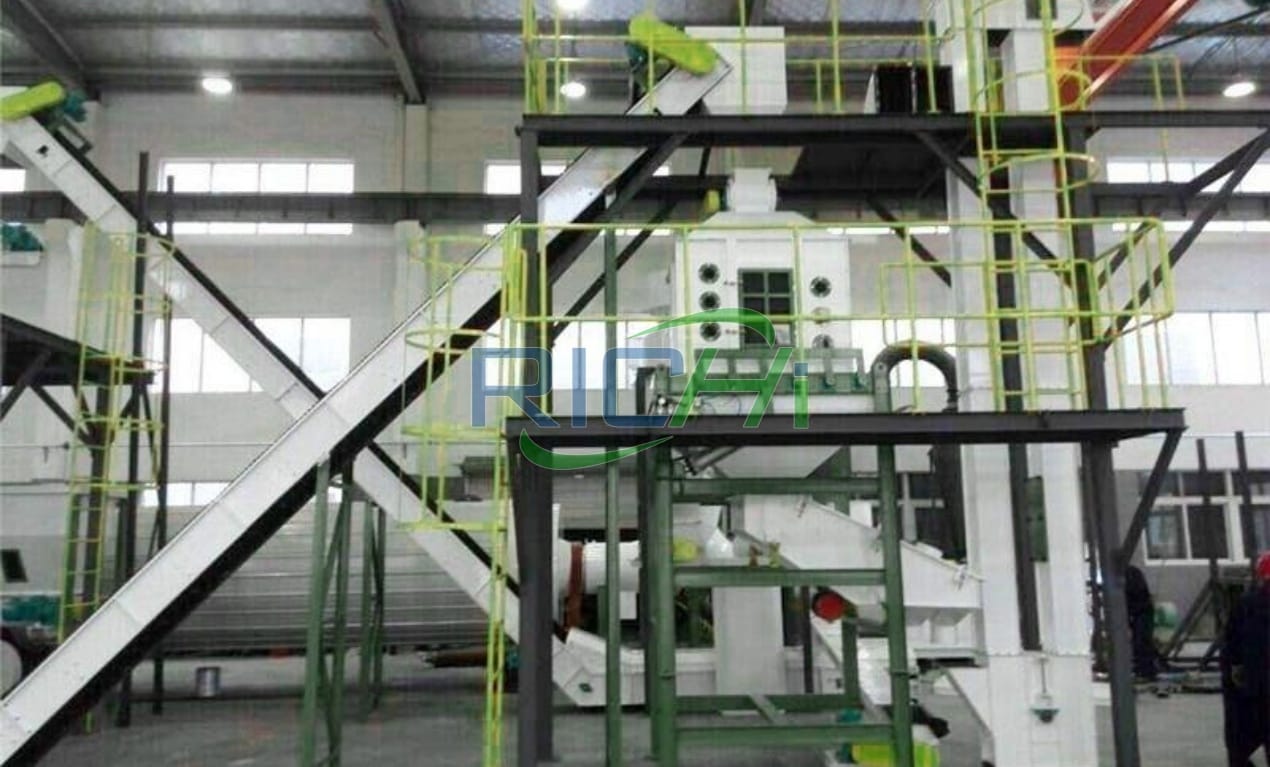

3-4T/H vertical biomass pellet machine in Brazil
Brazil has a well-developed livestock industry with numerous cattle and horse farms, leading to a continuously growing demand for animal bedding. The client, a local agricultural cooperative, wants to utilize annual agricultural waste to produce bedding pellets to supply the local ranch pet bedding market.
The client uses harvested agricultural waste for pelleting. Therefore, the raw material composition varies seasonally. We specifically added a mixer to this production line to ensure stable pellet formation regardless of raw material fluctuations.
- Main equipment: Crusher, mixer, vertical biomass pellet mill, dryer, cooler, baling scale
- Raw materials: Corn stalks, bagasse, soybean stalks, etc.

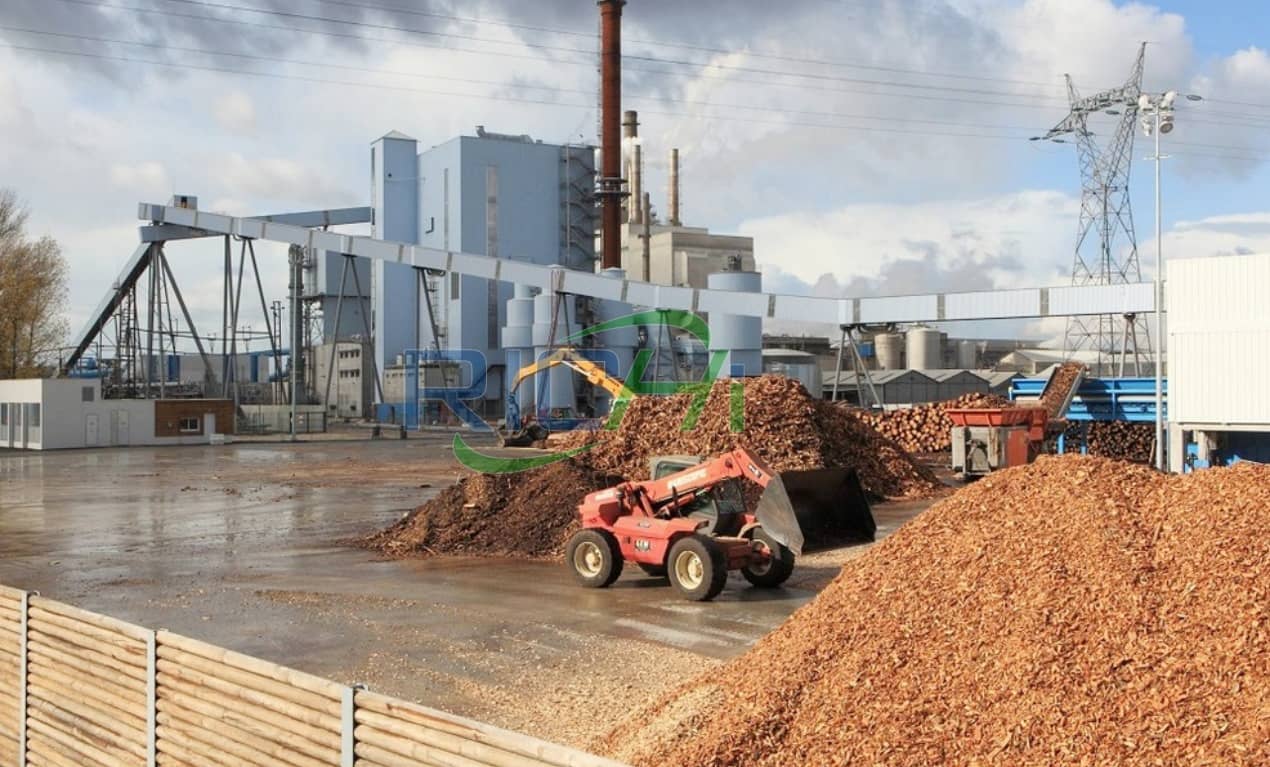

4-5T/H Vertical Biomass Pelletizer in Poland
This is a fully automated wood pellet production line. Only 3-4 operators are needed for the entire line to operate. The client is a regional energy company, primarily supplying fuel to district heating systems. Fuel demand surges during the cold season. The previous production line could no longer support continuous production. Therefore, the client wanted to take this opportunity to introduce an automated production solution to improve overall production efficiency and reduce labor costs.
- Raw Materials: Pine, Fir, Wood Chips
- Main Equipment: Vertical biomass pellet press, chipper, crusher, dryer, cooler, automatic packaging system, PLC system
Why Choose RICHI?
By choosing RICHI Machinery, you work with a manufacturer with over 30 years of experience in animal feed equipment production and gain a reliable long-term partner. We provide affordable and transparent pricing, along with efficient and comprehensive after-sales service, so you can carry out your feed production with confidence.
Excellent after-sales service
After the Vertical Biomass Pellet Machine, we will carry out professional commissioning and acceptance. Our technicians will repeatedly commission the equipment in each production section to ensure the equipment operates up to standard. Additionally, if you are unfamiliar with our equipment, RICHI technicians will provide one-on-one on-site training until your team can operate the entire production line independently.
Customized design
RICHI has a dedicated R&D and design team to provide you with customized services. We offer over 200 products to meet all types of chicken feed production needs. In addition, we provide full-process design services, including site planning and equipment layout. Whether you are new to the feed industry or already operating a mature production line, just share your requirements with us, and we will deliver a tailored solution based on your actual situation.
High-quality equipment production
The production stage is the core link of the entire project implementation. We own two modern intelligent manufacturing bases and operate a strict quality control system. Every piece of equipment meets international first-class standards. The company has passed BV certification, ISO9001 International Quality Management System Certification, European CE Certification, and Swiss SGS Certification, among others.
Frequently Asked Questions
Here are some frequently asked questions. You can also contact us at any time for answers.
What is the appropriate moisture content of the raw materials before granulation?
We recommend controlling the moisture content of raw materials between 13% and 18%. After multiple production tests, the molding rate of raw materials with humidity within this range can reach over 98%.
What size pellets can your vertical biomass pellet machine produce?
This equipment can produce pellets with a diameter of 2-12mm.
Below are the commonly used sizes for different particles. In addition, we can customize ring dies.
| Pellet Products | Organic Fertilizer Pellets | Cat Litter Pellets | Animal Bedding Pellets | Biomass Fuel Pellets |
| Diameter Range | 3–5 mm | 3–8 mm | 6–12 mm | 6–10 mm |
However, one point to note is that the pellet size cannot be adjusted arbitrarily during production. If you want to change the pellet size, you need to replace the ring die with one of the corresponding specifications. For easy replacement, our Vertical Biomass Processing Machine is equipped with an automatic ring die lifting machine. Replacement can be done at any time simply by pressing a button.
How much does this equipment cost?
Generally, the vertical biomass pellet machine price is between $10,000 and $50,000, but the specific price depends on the production capacity and process configuration. You can consult our professional team, who will provide a detailed quote based on your actual production needs.
How is your after-sales service?
After the equipment arrives, we provide on-site installation guidance and operation training to ensure you can start production in the shortest possible time. All equipment comes with a 12-month warranty; we will repair any malfunctions free of charge.
