wood chip pellet machine

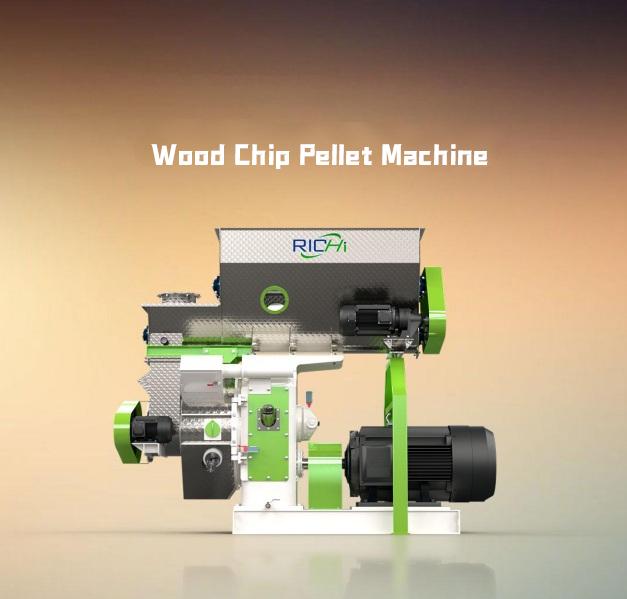

Introduction to the wood chip pellet machine
There are two types of wood chip pellet machines: flat die pellet mills and ring die pellet mills. However, ring die pellet mills offer higher output and better pelleting results. Therefore, they have gradually become the primary choice for commercial wood pellet makers.
A ring die machine for making wood chip pellets consists of a feeder, a pellet bin, and a drive system. Common wood waste, such as wood chips, sawdust, and shavings, can be fed into the pellet mill. The ring die and pressure rollers will quickly compress them into biomass pellets of 4-12mm. These pellets are small in size and burn more completely, making them ideal for power generation or heating.
RICHI Machinery is a professional supplier specializing in wood pelleting equipment. Here, you can not only find high-quality wood pellet machine, but more importantly, a professional team ready to customize the most scientific production solutions to meet your specific needs. Feel free to contact us anytime!
Hot-selling wood chip pellet machine models
Wood chip pellet machines are available with flexible output options ranging from 0.2 to 4 T/H. Of course, this is just the standard capacity. We can also tailor production solutions to help you achieve maximum production efficiency.

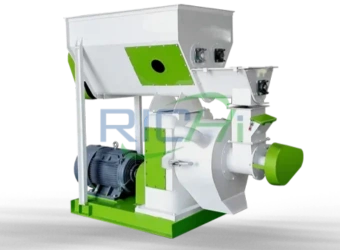

MZLH320 wood chip pellet machine for Sale
Capacity: 0.2-0.3T/H
Main Motor Power: 22kw

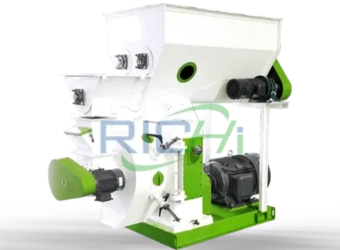

MZLH350 wood chip pellet mill
Capacity: 0.3-0.5T/H
Main Motor Power: 37kw

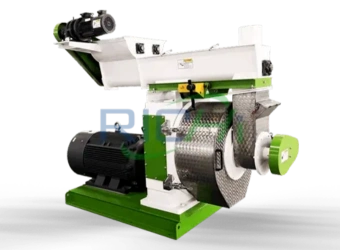

MZLH420 wood chip pelleter
Capacity: 1-1.2T/H
Main Motor Power: 90kw

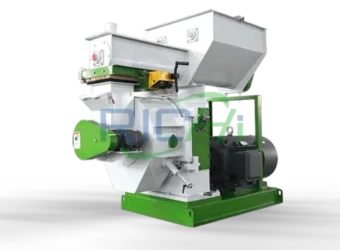

MZLH520 wood chip pellet mill for sale
Capacity: 1.5-2.0T/H
Main Motor Power: 132kw

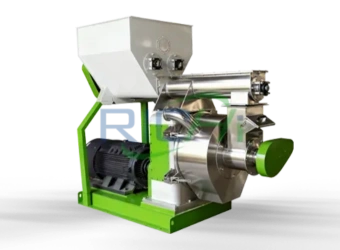

MZLH678 wood chip pellet making machine
Capacity: 2.5-3T/H
Main Motor Power: 185kw

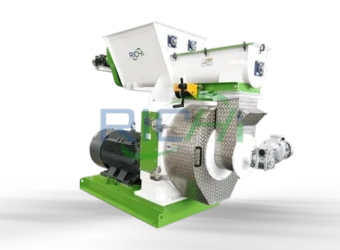

MZLH768 wood chip pellet press
Capacity: 3-4T/H
Main Motor Power: 250kw
| Model | CZLH320 | CZLH350 | CZLH420 | CZLH520 | CZLH678 | CZLH768 |
| Main Motor Power (kW) | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch-Breaking Feeder Power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Die Inner Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4~12 | |||||
| Output (T/H) | 0.5-0.6 | 1.0-1.2 | 1.8-2.0 | 2.8-3.0 | 4-5 | 6-8 |
(Our wood chip pellet making machine technology is constantly being updated and upgraded. The exact output will need to be determined based on actual conditions. However, we can guarantee that you will receive the highest quality production equipment and the most attentive service here.)
Key components of a wood chip pellet machine
RICHI peanut shell pellet machines have been applied to numerous successful biomass pellet projects. We provide scientific and reliable production solutions tailored to our clients’ specific needs, successfully helping customers worldwide achieve waste resource utilization and stable income. Below are some classic case studies for your reference.
High-efficiency feeding device
The two spirals of the arch-breaking feeder break up the raw material and force it into the machine. The second challenge is ensuring these lightweight materials smoothly enter the pelleting hopper. Therefore, we installed a forced feeder in front of the pelleting hopper. Under its forced thrust, the raw material can be pelletized smoothly.
Precision pelleting system

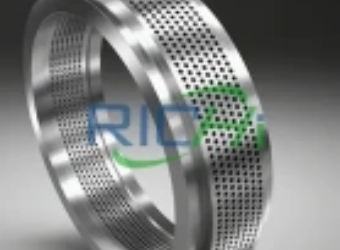

The pelleting chamber is like a “beauty salon.” From the moment the raw material enters, the ring die and pressure rollers act like beauticians. Through extrusion, they help the raw material to be quickly shaped. The final pellet size can be flexibly selected between 4-12mm..
drive system
The wood chip pellet machine consists of a Siemens motor, gearbox, and reduction gear. Together, they convert electrical energy into mechanical kinetic energy. Even under high load conditions, the pelletizing process continues steadily
Protective devices
If the operator fails to detect an overload in time, the wood chip pelleter will face motor burnout and the scrapping of critical components. However, the safety pin will quickly break and cut off the power supply once this situation is detected, preventing further damage to the machine.
Advantages of wood chip pellet machines
- The wood chip pellet machine can process various agricultural and forestry wastes into profitable pellets.
- The equipment can be used in the biomass, energy, and animal bedding industries.
- Constructed from wear-resistant materials, its lifespan is twice that of ordinary machines.
- It is easy to operate and features an automatic lubrication system that provides timed, automatic oil supply, saving labor.
- The heavy-duty frame ensures low noise and prevents the machine from shifting during operation.
- Key components are sealed to prevent dust ingress.

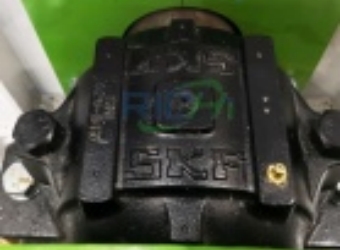

- It uses high-quality SKF bearings to ensure stable torque output.
- Factory direct shipping, low price.
How does a wood chip pellet machine work?
A wood chip pellet machine is the main equipment for producing wood chips. Once the prepared raw materials are fed in, the pellet mill automatically begins efficient processing.
The raw materials enter through the feed inlet and flow into the pelleting hopper via a chute.
The ring die and pressure rollers compress the raw materials into cylindrical strips. The material is extruded through the die holes, and the waiting cutter quickly chops the strips into uniformly sized pellets.
These hot, soft pellets exit the pellet mill. A cooler quickly cools and shapes them before they enter the packaging area.
What are the advantages of wood pellets produced by a wood pellet machine?
Wood chip pellet machines are specifically designed to produce wood pellets. Under high temperature and pressure, loose wood chips are transformed into high-density pellets. Currently, they have become a globally popular clean biomass fuel, widely used in industrial boilers, heating, and animal bedding.
RICHI Machinery
Burns better

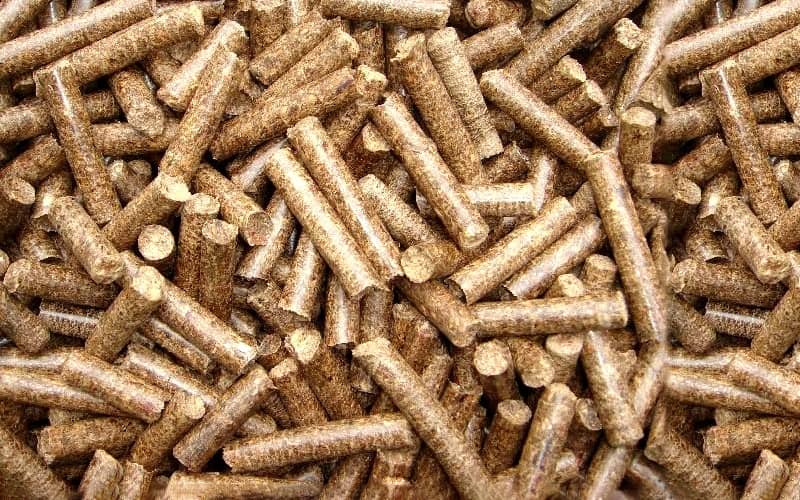

A wood chip pellet press compresses wood chips into cylindrical pellets. High pressure forces air out of the wood chips, gradually increasing their density. Unlike regular wood chips, it doesn’t burn up quickly. Instead, it continuously releases heat, providing a more stable heat output and effectively reducing energy procurement costs. This is especially important for plants that require large quantities of fuel.
RICHI Machinery
Lower transportation costs
Loose raw materials like sawdust, if sold directly as a commodity, would take up a lot of transport space due to their large volume. However, after being compressed into sawdust pellets, the volume decreases. This allows for the shipment of more goods at once, helping to improve logistics efficiency and reduce costs.
RICHI Machinery
Wood chips are suitable for long-term storage
Before granulation, the raw materials are dried to reduce their internal moisture content to 13-15%. Only then can they be extruded into pellets. Simultaneously, the temperature during pelleting can reach above 70 degrees Celsius. Under this environment, some of the moisture in the raw materials gradually evaporates. The resulting pellets are less prone to loosening and mold growth, ensuring a continuous commercial supply.
RICHI Machinery
Combustion is more environmentally friendly
Wood chip pellets are a renewable clean energy source. Traditional wood chips produce a lot of smoke and residue when burned. However, pellets produced by a wood chip pellet machine are uniform in size, allowing for more even and complete combustion. This significantly reduces dust and sulfur dioxide emissions into the air, aligning perfectly with global green and environmentally friendly trends.
How to use a wood chip pellet machine to produce high-quality pellets?
We know that wood pellets produced by pellet mills have many advantages. So how do we produce high-quality pellets that burn completely and are uniformly consistent? First and foremost, the processing of the raw materials is crucial.
The complete production process of wood pellets includes multiple stages such as crushing, drying, cooling, and packaging. However, the equipment configuration and processing technology will vary depending on the raw materials and output.
• Coarse raw materials (twigs, wood blocks, scraps)
Cleaning – Coarse crushing – Secondary crushing – Drying – Pelleting – Cooling – Packaging
Main equipment: Cleaning machine, chipper, Wood Chip Hammer Mill, dryer, cooler
These raw materials are large, so we first chip them into wood chips. Then we use a pulverizer to crush them into 3-5mm powder.
• Fine wood chips (sawdust, shavings)
Cleaning – Crushing – Drying -Pelleting – Cooling – Packaging
Main equipment: Cleaning machine, Wood Chip Hammer, Wood chip pellet machine, dryer, cooler
This type of raw material is relatively simple to process. Generally, it only needs to be crushed once to achieve the ideal granulation state. However, it is important to control the moisture content of the raw material.
• High-moisture wood chip(moisture content greater than 70%)
Cleaning – Crushing – Drying -Pelleting – Cooling – Packaging
Main equipment: Cleaning machine, Wood Chip Hammer Mill, Rotary Drum Dryer, Cooler, Bagging Scale.
Feeding raw materials with high moisture content directly into the pellet mill will clog the machine. Therefore, a dryer is well-suited for industrial processing. It utilizes internal hot air to quickly remove moisture from materials, shortening drying time.
•Mixed wood chips
Cleaning – Crushing – Drying -Pelleting – Cooling – Packaging
Main equipment: wood chip cleaner, crusher, mixer, dryer, pelletizer, cooler.
Raw materials from different sources are mixed. They may contain a large number of impurities such as stones and iron pieces. Removing these is a crucial step. Secondly, the mixer ensures that the moisture content and composition of the raw materials are consistent, which can improve the pellet-forming rate and the pass rate.
Real video of the Wood chip pellet machine
Below are real videos of the wood chip pellet machine. You can gain a more intuitive understanding of the actual performance and application effects of our complete solution in a real project.
RICHI’s Wood Pellet Production Line Now Operating in Indonesia
RICHI Feed Production Line in Canada
Wood Chip Pellet Production Line in Romania
Global Case Studies of the wood chip pellet machine
RICHI Machinery’s wood pelleting technology is transforming wood waste into high-value commodities. Currently, customers from over 140 countries worldwide have easily achieved commercial operations of biomass pellets using our efficient production solutions.

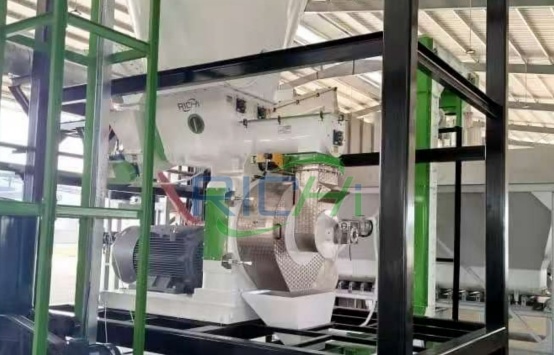

South African 2T/H wood chip pellet making machine
The customer wants to produce wood pellets that can replace coal, providing fuel for industrial boilers in the surrounding factories.
- Raw materials: Pine sawdust, wood scraps
- Pellet diameter: 6-8mm
- Production equipment: MZLH-520 wood chip pellet maker, wood pulverizer, dryer, cooler, baling scale

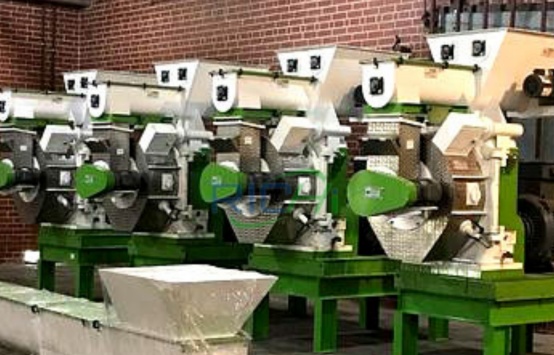

10 tons/hour wood chip pellet machine in the United States
A large-scale wood pellet production line primarily supplies domestic heating and energy for export.
The final pellets produced have perfectly passed the international ENplus A1 certification.
- Raw materials: Tree trunk scraps, sawdust, wood shavings
- Pellet diameter: 6-8mm
- Main equipment: MZLH-678×4 wood chip to pellet machine, crusher, drum dryer, cooler, automatic packaging system

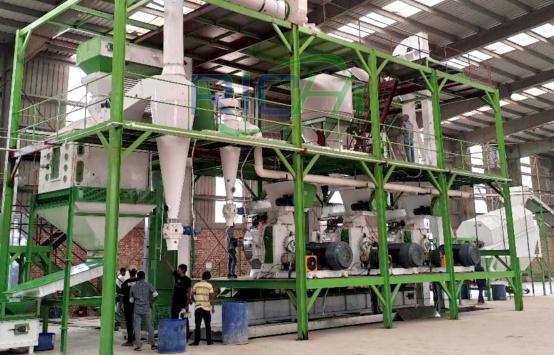

20 tons/hour Bangladesh wood chip pellet mill
This is a fully automated wood pellet production line. The client is a professional bioenergy company. All the wood pellets produced are exported.
This large-scale production line requires only 4-5 personnel to achieve efficient and continuous pelletizing operations.
- Raw materials: Sawdust, wood chips
- Furniture processing waste
- Pellet diameter: 6-8mm
- Equipment: Custom wood chip pellet machine, cleaning screen, crusher, dryer, cooler, automatic packaging system, PLC intelligent control system
Why Choose RICHI Machinery
Choosing RICHI Machinery means not just acquiring a single machine, but teaming up with a reliable partner with nearly 30 years of expertise in Biomass pellet machines. We look forward to joining hands with you to shape a new future for the feed industry.
Excellent after-sales service
After the wood chip pellet machine arrives, we will carry out professional commissioning and acceptance. Our technicians will repeatedly commission the equipment in each production section to ensure the equipment operates up to standard. Additionally, if you are unfamiliar with our equipment, RICHI technicians will provide one-on-one on-site training until your team can operate the entire production line independently. For any questions, our technicians can provide online guidance.
Customized design
RICHI has a dedicated R&D and design team to provide you with customized services. We offer over 200 products to meet all types of chicken feed production needs. In addition, we provide full-process design services, including site planning and equipment layout. Whether you are new to the feed industry or already operating a mature production line, just share your requirements with us, and we will deliver a tailored solution based on your actual situation.
Our Honors
At RICHI Machinery, we believe that stable performance and real results matter more than slogans. Over the years, we have earned a number of international certifications and national patents, especially in equipment design and quality control. This means our feed and biomass pellet machines are not only well-designed, but also proven in real projects. We welcome the opportunity to work with you and support your business growth with reliable and efficient solutions.
High-quality equipment production
The production stage is the core link of the entire project implementation. We own two modern intelligent manufacturing bases and operate a strict quality control system. Every piece of equipment meets international first-class standards. The company has passed BV certification, ISO9001 International Quality Management System Certification, European CE Certification, and Swiss SGS Certification, among others.
consultation
cooperation
production
transportation
Frequently Asked Questions
Here are some frequently asked questions. You can also contact us at any time for answers.
What materials can a wood chip pellet machine process?
Wood chip pellet making machines can process a wide range of materials, mainly including:
- Wood materials: wood chips, sawdust, shavings, wood shavings, branches, bamboo, furniture waste, etc.
- Agricultural and forestry waste: corn stalks, wheat stalks, peanut shells, melon vines, palm fiber waste.
- Industrial waste: waste paper, coffee grounds.
Processing these raw materials is not difficult. However, to produce dense, high-quality pellets, it is necessary to pay attention to the size and moisture content of the raw materials. Especially for mixed raw material formulations, maintaining the same state of the raw materials is a crucial factor affecting pellet formation.
Where can a wood chip pellet press be used?
Wood chip pellet mills can be used for residential or commercial heating, fuel plants, and energy plants. The produced pellets are smooth and uniform, making them an excellent choice for bedding for animals such as cattle and horses.
After understanding the applications of wood chip pelleters, the next step is to find a reliable supplier.
From the moment you initiate an inquiry, RICHI Machinery will provide a customized pelleting solution based on your information within one day. Before shipping, we will test all equipment on the production line to ensure you receive the equipment in perfect working order.
To resolve any difficulties you may encounter during installation and production, we offer specialized on-site installation training and remote technical guidance. You can confidently entrust all equipment-related issues to us.
What is the price of a wood chip pellet machine?
Generally, the price of a wood chip pellet making mill ranges from $15,000 to $50,000. However, an accurate quote will depend on your specific configuration and production capacity.
What is the price of a wood chip pelletizer?
All our equipment comes with a one-year warranty. During this year, if you encounter any equipment malfunctions, our after-sales personnel will dispatch a specialist for repair. We also provide lifetime free technical support to continuously ensure smooth production.
