Mushuk axlati pelet mashinası
Cat litter pellet machines can process mineral, plant, and fibrous materials into the best pellet litter. The entire pelleting process uses physical extrusion pelleting technology, without adding any chemical components. The final pellets are environmentally friendly, dust-free, and have excellent clumping properties. Pellet sizes can range from 0.8-8mm, and they are widely used in bedding for cats, mice, and other pets.
Bundan tashqari, RICHI Machinery sizning maxsus ehtiyojlaringizni qondirish uchun moslashtirilgan mushuk qum yechimlarini taklif etadi. Iltimos, istalgan vaqtda biz bilan bog'lanishdan tortinmang.

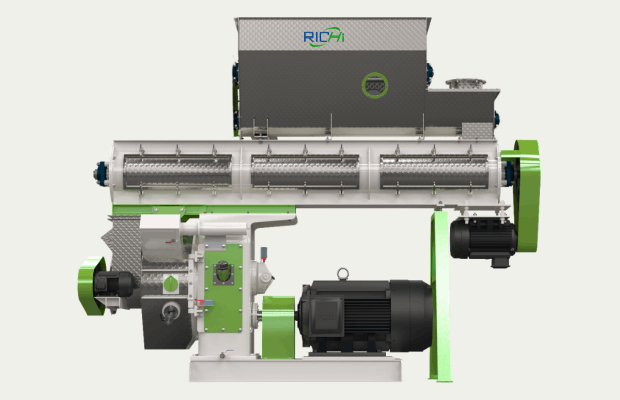

What is a cat litter pellet machine?
RICHI Machinery’s cat litter pellet machine is specifically designed for low-dust cat litter. It uses a ring die to press expanded clay, tofu residue, sawdust, and other materials into smooth, compact, and environmentally friendly cat litter pellets. In practical applications, these pellets have excellent water absorption and quickly clump together, making them highly competitive in the market.


Albatta, RICHI Machinery shuningdek maxsus ishlab chiqarish liniyasi xizmatlarini ham taklif etadi. Zavodni sozlashdan tortib eng yaxshi mushuk axlati peletlash yechimlarini yetkazib berishgacha, biz ishlab chiqarishingizni optimal darajada ishlashini ta'minlaymiz.
Atrof-muhitga do'st mushuk axlati pelet mashinas
RICHI cat litter pellet machine is available in various models with hourly capacities ranging from 1 to 45 tons. If your production scale is small, you can choose a compact, small-scale cat litter processing machine. For large-scale commercial feed production, we can provide industrial-grade pellet mills to ensure stable pelleting.
Broad applicability
It enables the efficient production of various best-selling cat litter types. By adjusting parameters, the cat litter sand machine supports the production of granules with diameters ranging from 2mm to 12mm.
Ishlatish oson
The cat litter pelletizing machine features a high level of automation, enabling continuous production with minimal manual intervention, thereby effectively reducing labor costs.
Yuqori samaradorlik va past iste'mol
Featuring a high-efficiency gear drive and advanced extrusion technology, the system supports prolonged operation with a low failure rate. A stable feeding system minimizes energy loss caused by machine idling.
Real videos of cat litter pellet machine
Below, we showcase actual cat litter granulation projects undertaken by RICHI, along with machine trial videos, to help you understand the production performance and granule quality of our kitty litter machines.
You will notice that production solutions vary from client to client; this is because RICHI custom-designs every cat litter production line based on specific factors such as raw material characteristics, output requirements, product types, and actual production conditions. You can also view more real-world case studies similar to your own on Yutub.

Malayziyadagi tofu mushuk qumchasi ishlab chiqarish liniyasi loyihasi
This system produces eco-friendly tofu cat litter from soybean dregs and other plant-based materials, with grinding, mixing, granulation, drying, screening, and packaging for stable production and consistent quality.

3-4 T/H Double-Layer Conditioner Bentonite Cat Litter Pellet Machine Test in UK

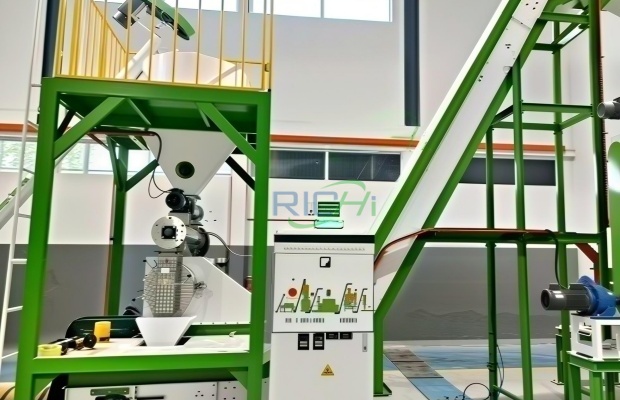

Tailanddagi 1H sig'imli mushuk axlati pelet ishlab chiqarish liniyasi
This production line is specifically designed for the efficient, eco-friendly, and high-quality manufacture of cat litter. It utilizes natural plant-based raw materials—such as soy pulp, corn starch, and guar gum—to produce high-performance, biodegradable tofu cat litter.
Two different types of cat litter pellet machines
Common types of cat litter include bentonite, cassava, tofu, waste paper, and sawdust litter. To ensure the quality of the final granules, RICHI has developed and manufactured the following two types of cat litter pellet machines, drawing on experience from over 2,000 on-site projects to meet diverse production requirements.
Mushuk axlati pelet mashinasining asosiy komponentlari
If you are unsure which cat litter pellet machine to choose, consider examining the equipment’s components and structure. High-quality cat litter should have durable materials and the ability to last a long time. While efficiently producing various types of cat litter, it can effectively reduce cost losses caused by frequent downtime.
Mushuk axlati pelet mashinalarining qo'llanilishi
Cat litter pellet machines can process various cat litter raw materials, including mineral, plant-based, silica-based, and biomass-based materials. Not only can they produce from single raw materials, but combinations of multiple raw materials can also be processed using this equipment.
Therefore, choosing the RICHI best cat litter machine offers greater flexibility in your production. You are no longer restricted by expensive, single-source raw materials; instead, you can source more reasonably priced and reliably available materials locally to produce cost-effective cat litter pellets.

- Mineral mushuk qumchasi: bentonit mushuk qumchasi, mineral qumcha, kristalli qumcha va boshqalar.
- O'simlikka asoslangan mushuk axlat qumli: tofu, makkajo'xori, bambuk tolasi va boshqalar.
- Biomassa mushuk qumchasi: qarag'ay yog'ochidan yasalgan mushuk qumchasi, peletli mushuk qumchasi, qog'oz qoldiqlaridan yasalgan mushuk qumchasi
- Aralashtirilgan mushuk axlat qumli aralashmasi: bentonit + tofu, bentonit + faollashtirilgan ko'mir va hokazo.

qog'oz

Bentonit

Soya loviyalari

daraxt

makkajo'xori g'o'ldiri

silikon

pishirish sodasi

faollashtirilgan uglerod
Istalgan vaqtda bizga xomashyo talablaringizni yuborishingiz mumkin, va biz sizga eng mos mushuk axlati peletlash uskunalarini taqdim etamiz.
Mushuk axlati pelet mashinasining ishlash tamoyili
The formation of cat litter primarily involves three steps: feeding, extrusion, and granulation.
Under the high-intensity compression of the ring die and rollers, the raw materials are rapidly formed into elongated strands.
As the material exits the die holes, a cutter precisely and quickly cuts it into smooth, compact cat litter pellets.
It is worth noting, however, that producing tofu or mineral cat litter requires a high-temperature conditioning step to gelatinize the raw materials, thereby improving the granulation rate and reducing dust and fines.

ning parametrlari Mushuk axlati pelet mashinası
Here are the basic specifications for two types of cat litter pellet mills. However, actual production capacity may vary depending on the type of raw material, moisture content, and formulation. Therefore, we will provide a specific configuration and production plan after a comprehensive assessment of your requirements.
Generally, cat litter pellet machine price varies based on the model, capacity, and configuration, typically ranging from $7,000 to $100,000.
| Model | MSZLH250 | MSZLH320 | MSZLH350 | MSZLH420 | MSZLH508 | MSZLH558 | MSZLH678 | MSZLH768 |
| Asosiy motor quvvati (kW) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder quvvati (kW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Konditsioner quvvati (kVt) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Halqa qolipi ichki diametri (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Tayyor pelet diametri (mm) | 2~12 | |||||||
| Chiqish (T/H) | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 | MZLH858 |
| Asosiy motor quvvati (kVt) | 22 | 37 | 90 | 132 | 200 | 250 | 280 |
| Orqa egri bo'lishga qarshi boqish qurilmasi quvvati (kVt) | 2.2 | 2.2 | 3 | 3 | 3 | 4 | 4 |
| Majburiy boqish qurilmasi quvvati (kVt) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Halqa qolipining ichki diametri (mm) | 320 | 350 | 420 | 520 | 673 | 762 | 858 |
| Tugallangan zarrachalarning diametri (mm) | 4~12 | ||||||
| Chiqish (T/H) | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 | 4~5 |

Various Cat Litter pelleting Solutions
Selecting the right raw materials is merely the first step in producing high-quality cat litter. What matters more is processing these materials into high-quality granules. This requires not only a well-configured cat sand machine but, more importantly, a granulation process tailored to the specific characteristics of the raw materials to ensure efficient, stable production. Below are some common pelleting solutions for cat litter; you may also contact us for a customized solution.

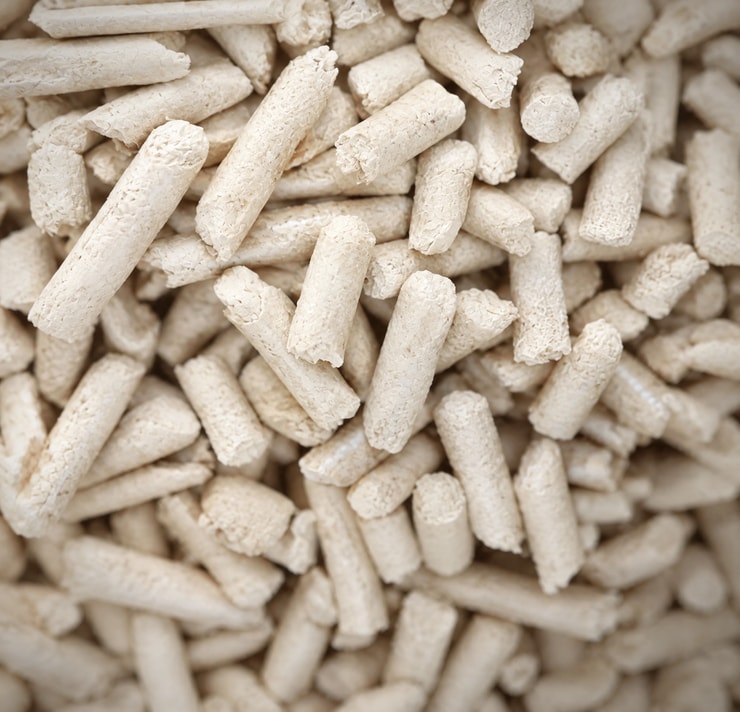

Tofu mushuk qumchasi

Bentonit mushuk qumchasi

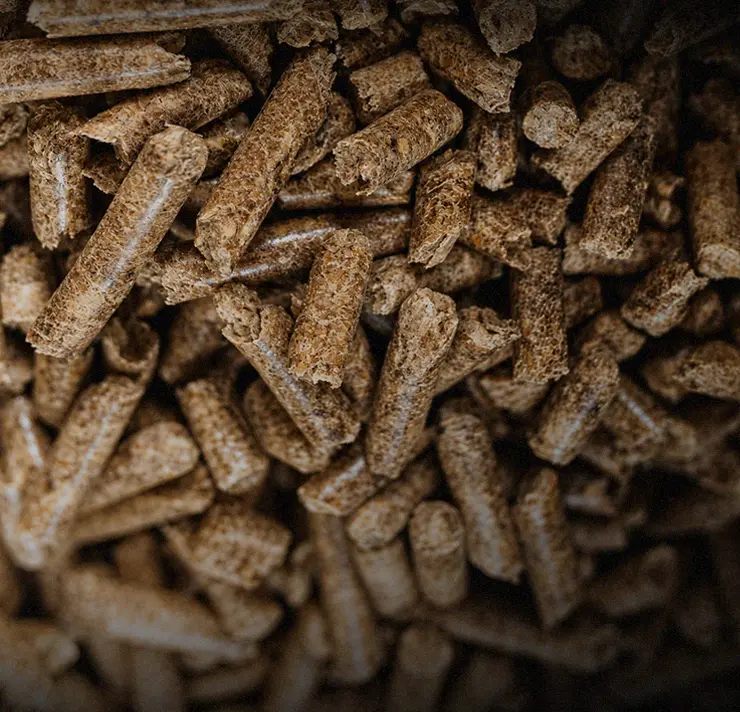

yog'och peletli mushuk qumchasi

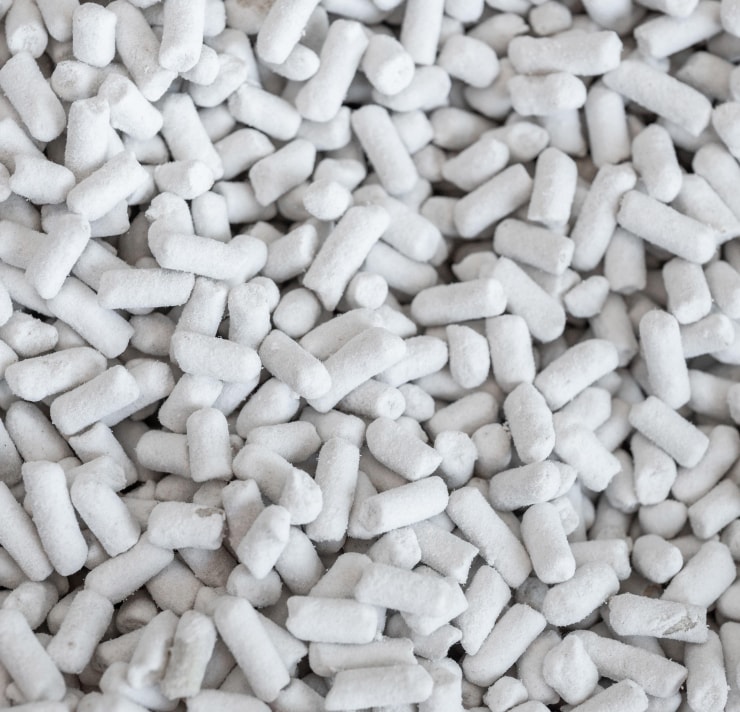

Paper pellet cat litter

Cat Litter Pellet Machine Global Projects
RICHI Machinery siz uchun mushuk axlati peletlash ishlab chiqarish bo'yicha maxsus yechimlar yaratishi mumkin. Hozirda ularning yechimlari AQSh, Polsha, Yaponiya, Rossiya va Italiya hamda boshqa 140 dan ortiq mamlakat va mintaqalarda joriy etilgan. Quyida uskunalar va ishlab chiqarish liniyalarining real ish faoliyatini ko'rib chiqishingizga yordam beradigan bir nechta namuna sifatida mushuk axlati peletlash loyihalari keltirilgan.

The Entire Process of Cat Litter Pellet Production Line
Mushuk axlati pelet mashinası to'liq ishlab chiqarish liniyasining asosiy uskunasidir. Biroq, yuqori samarali ishlab chiqarishga erishish uchun turli yordamchi uskuna va ilmiy jarayon dizayni talab etiladi. Mushuk axreti qumchasi ishlab chiqarish liniyasi odatda bir nechta bosqichni o'z ichiga oladi: tozalash, quritish, aralashtirish, sovutish va qadoqlash. Biroq, bizning muhandislarimiz ishlab chiqarish liniyasini barpo etishda haqiqiy ishlab chiqarish sharoitlariga asoslanib ushbu bosqichlarni mantiqan tartibga soladi va shu orqali sizning ishlab chiqarish samaradorligingizni maksimal darajaga ko'tarishga yordam beradi.

Tozalash
Ezish
Aralashtirish
Quritish
Pelletlash
Salqinroq
Skrining
Qadoqlash
Advantages of cat litter pellets
After undergoing appropriate processing, cat litter produced by cat litter pellet machines offers the following advantages:
Fast Absorption
After undergoing high-pressure extrusion and cooling to set their shape, the granules develop tiny internal pores that rapidly absorb cat urine, keeping the litter box dry.
Easy Clumping
The high-pressure conditioning process distributes the starch evenly within the granules. Urine triggers starch gelatinization, enabling rapid clumping.

Easy to Store & Transport
The formed cat litter granules are denser and more uniform in shape. This reduces storage space requirements and minimizes the risk of breakage during transport.
Low Dust
Proper granulation, cooling, and screening processes effectively control cat litter dust, protecting the respiratory health of cats.
Nega RICHIni tanlashingiz kerak?
Tanlash orqali RICHI Mashinalar, Siz uskunalar ishlab chiqarishda 30 yildan ortiq tajribaga ega ishlab chiqaruvchi bilan hamkorlik qilasiz va ishonchli uzoq muddatli hamkor orttirasiz. Biz maqbul va shaffof narxlarni, shuningdek samarali va keng qamrovli sotuvdan keyingi xizmatni taqdim etamiz, shunda siz ozuqa ishlab chiqarishni ishonch bilan amalga oshirishingiz mumkin.

Moslashtirilgan dizayn
RICHI sizga moslashtirilgan xizmatlar ko'rsatish uchun maxsus ilmiy-tadqiqot va dizayn jamoasiga ega. Xomashyo, ishlab chiqarish quvvati va pelet turiga oid talablaringizni keng qamrovli baholab, barcha uskunalar konfiguratsiyalari va ishlab chiqarish jarayonlari haqiqiy ehtiyojlaringizga to'liq javob berishini ta'minlaymiz.

Yuqori sifatli uskunalar ishlab chiqarish
Bizda ikkita zamonaviy, intellektual ishlab chiqarish bazasi mavjud bo'lib, qat'iy sifat nazorati tizimini qo'llaymiz. Har bir uskuna xalqaro birinchi darajali standartlarga javob beradi. Kompaniya, xususan, BV sertifikati, ISO 9001 Xalqaro Sifat Boshqaruv Tizimi sertifikati, Yevropa CE sertifikati va Shveytsariya SGS sertifikatidan o'tgan.

Ajoyib sotuvdan keyingi xizmat
After the cat litter pellet machine arrives, our professional engineers will assist with installation and commissioning. They will also provide one-on-one operation training until your team can operate it proficiently.

Ko'p beriladigan savollar
Mana tez-tez beriladigan savollar. Javoblar uchun istalgan vaqtda biz bilan bog'lanishingiz mumkin.
Tofu mushuk qumchasi ishlab chiqarishda qo'shimcha bog'lovchi moddalar qo'shish talab qilinadimi?
Yo'q, tofu mushuk qumchasi allaqachon kraxmalni o'z ichiga oladi. Bug' bilan ishlov berish kraxmalning tabiiy yopishqoqligini faollashtiradi va yuqori bosimli mexanik ekstrudatsiya orqali granulalar barqaror va zich bo'ladi. Tayyor mushuk qumchasi sog'lomroq bo'lib, ingredient xarajatlarini tejashga yordam beradi.
Kichik mushuk axreti granulalari ishlab chiqarish zavodi qaysi modelni tanlashi mumkin?
Kichik qayta ishlash zavodlari uskunalarni tanlashda maydon hajmi, investitsiya xarajatlari, ishlab chiqarish quvvati va energiya iste'molini hisobga olishlari kerak.
Siz ikkita model – MZLH320 va MZLH350 – orasidan tanlashingiz mumkin; ikkalasi ham ixcham tuzilishga va kichik o'lchamli poydevor maydoniga ega.
MZLH320 O'lchamlari: 2200 × 900 × 1300 mm
MZLH350 o'lchamlari: 2500 × 1100 × 1600 mm
Avval Rossiyalik mijozimizning maydoni 300 kvadrat metrdan kam edi. Oxir-oqibat ular xomashyo ombori yoki tayyor mahsulotni qadoqlash joyiga to'sqinlik qilmaydigan ixcham MZLH350 modelini tanladilar. Hozirda ularning kunlik ishlab chiqarish quvvati soatiga 80–100 tonnaga yetib, elektron tijorat bozoriga muvaffaqiyatli kirishdi.
Quritgichsiz havoda quritish mumkinmi?
Agar siz yil bo'yi quyoshli hududda joylashgan kichik hajmdagi mushuk qumchasi ishlab chiqaruvchisi bo'lsangiz, havoda quritish mutlaqo maqbuldir.
Biroq, sanoat miqyosida mushuk qumchasi qayta ishlash uchun biz quritgichdan foydalanishni tavsiya qilamiz. Quritgich xom ashyoning namlik darajasini tezda 15% dan pastga tushirishi va namlikni yanada bir xil darajada ushlab turishi mumkin, bu esa mushuk qumchasining hosildorligi va sifatini sezilarli darajada yaxshilaydi.
Halqa va bosim rolikni qachon va qanchalik tez-tez almashtirish kerak?
Bu xomashyo materiallaringizning xususiyatlari va ularning qo'llanilishiga bog'liq. Umuman olganda, eskirish va aşınma quyidagicha:
Halqa qolip: 500–1000 soat
Bosim g'ildiragi: 300–800 soat
Agar siz mineralli mushuk axlatini tayyorlayotgan bo'lsangiz, qattiqroq material tufayli halqa qolip va bosim roliklari nisbatan tez eskiradi. Aksincha, tofu, yog'och qirqimlari yoki boshqa yumshoq materiallardan tayyorlangan mushuk axlati metall yuzalarga kamroq zarar yetkazadi.
Ishlab chiqarish hajmi kamayganini va peletlar to'g'ri shakllanmayotganini sezsangiz, halqa qolip va bosim rolikni tekshirishingiz mumkin.
What is the warranty period for the cat litter pellet machine?
The cat litter pellet machine comes with a 12-month warranty and lifetime technical support. Should any non-human-induced malfunction occur during the warranty period, you can contact our after-sales team directly; they will promptly provide a solution and dispatch professional technicians to carry out repairs.
